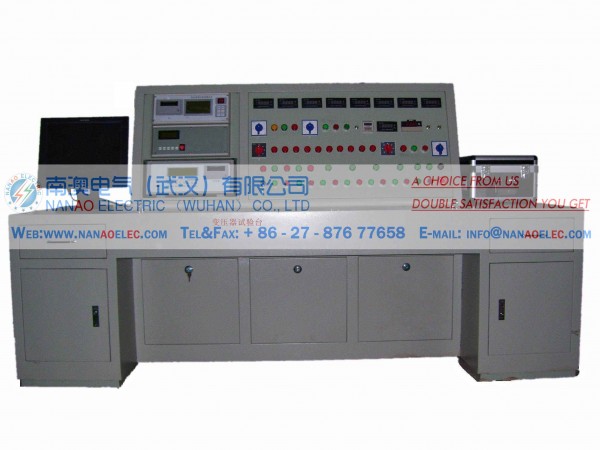

NABT-II Transformer Comprehensive Testing Bench    南澳電氣NABT-II全自動多功能變壓器綜合測試臺

南澳電氣NABT-II全自動多功能變壓器綜合測試臺

產品簡介

南澳電氣NABT-II全自動多功能變壓器綜合測試臺

是南澳電氣武漢公司根據《電力設備預防性試驗規程》對電力變壓器的試驗要求，以及試驗室試驗要求而自生設計生產的新產品。NABT-II變壓器綜合測試臺具有功能齊全、結構緊湊、外形美觀大方、通用性強和使用方便等特點，配置三臺新儀器，可全自動打印輸出。特別適用于電力系統、工礦企業、科研部門等對電力設備進行各種預防性試驗。

南澳電氣NABT-II全自動多功能變壓器綜合測試臺產品別名

變壓器特性綜合測試臺，變壓器特性測試臺，變壓器綜合試驗臺，變壓器測試臺，變壓器試驗臺

南澳電氣NABT-II全自動多功能變壓器綜合測試臺產品特性

1．直流電阻測試

2．變比組別測試

3．空、負載損耗測試

4．工頻耐壓試驗

南澳電氣NABT-II全自動多功能變壓器綜合測試臺產品參數

1.直流電阻測試

⑴ 測量范圍：1μΩ~20KΩ

⑵ 測試電流：0.02Ω,0.2Ω 10A

             2Ω 1A

             20Ω 100mA

             200Ω 10mA

             2K Ω 1mA

             20KΩ 0.1mA

⑷測試準確度:0.2% (滿量程)

⑸顯示方式:128*64點陣顯示

⑹zui大分辨:1μΩ

⑺電源:AC220V±22V,50HZ±2HZ

⑻功耗:200W

2.變比組別測試:

(1) 變比測量范圍:1~10000

(2) 組別:1~12點

(3) 精度:1~1000 0.21級 1000~10000 0.5級

(4) 電源:AC220V±10%,50HZ

3.損耗測試:

(1) 電壓:500V±(0.1%讀數+0.1%量程)

(2) 電流:±(0.1%讀數+0.1%量程)

(3) 功率:U*I±(0.1%讀數+0.1%量程)

(4) 功率因數:0.0101.000±3個字

(5) 電源:AC220V±22V,50HZ±2HZ

(6) 整機功耗:小于15VA

4.工頻耐壓試驗:

(1) 輸入電壓:兩相380V

(2) 輸出電壓:0~430V

(3) 表計精度: ±0.5%



Product introduction

NABT-II Multi-function transformer testing bench is the latest products by Nanao Electric, according to  "preventive test code for electrical equipment" of power transformer testing requirements, and laboratory tests and self-generated design and production requirements. NABT-II transformer integrated testbed with a full-featured, compact structure, elegant appearance, versatility and ease to use, equipped with three new instruments that can be printed out automatically. Especially suitable for power systems, industrial and mining enterprises, scientific research departments on a variety of electrical equipment preventive testing.

Also called name

transformer test bench, transformer test bed, integrated transformer test bed, transformer characteristic test bed

The Characteristics of the products

1.DC resistance testing

2.Turns ratio testing

3.no-load & load loss testing

4.Frequency voltage withstand testing

The parameters of the products

1. DC resistance test

⑴ measurement range :: 1μΩ ~ 20KΩ

⑵ testing current: 0.02Ω, 0.2Ω 10A

               2Ω 1A

               20Ω 100mA

               200Ω 10mA

               2K Ω 1mA

               20KΩ 0.1mA

⑷ test accuracy: 0.2% (full scale)

⑸ Display: 128 * 64 dot matrix display

⑹ maximum resolution: 1μΩ

⑺ Power supply: AC220V ± 22V, 50HZ ± 2HZ

⑻ power consumption: 200W2.

2. Ratio group testing

(1) variable ratio measuring range: 1 to 10000

(2) Section: 1~12 point

(3) Accuracy: 1 ~ 1000 0.21 grade 1000 ~ 10000 0.5 grade

(4) Power supply: AC220V ± 10%, 50HZ

3. Loss Test

(1) Voltage: 500V ± (0.1% reading +0.1% of range)

(2) Current: ± (0.1% reading +0.1% of range)

(3) Power: U * I ± (0.1% reading +0.1% of range)

(4) Power factor: 0.0101.000 ± 3 words

(5) Power supply: AC220V ± 22V, 50HZ ± 2HZ

(6) Power consumption: less than 15VA

4. Frequency voltage withstand testing

(1) Input voltage: 380V two-phase

(2) Output voltage: 0 ~ 430V

(3) Meter Accuracy: ± 0.5%



Power supply: AC110V/115V/120V/127V/220V/230V/240V optional

Input frequency: 50Hz/60Hz optional
