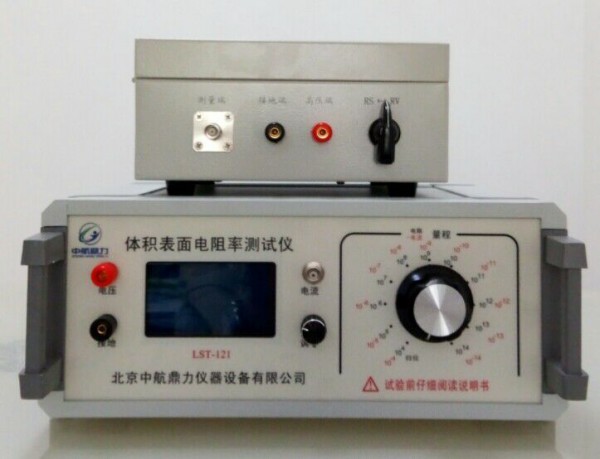

緣材料體積表面電阻率測試儀LST-121
Volume resistivity of insulating material surface resistivity measuring instrument LST-121
緣材料體積表面電阻率測試儀符合標準：
Meet the standards:
GB/T 1410-2006《 固體緣材料體積電阻率和表面電阻率試驗方法》
Test method for volume resistivity and surface resistivity of solid insulating materials by 1410-2006 GB/T
ASTM D257-99《緣材料的直流電阻或電導試驗方法》
Test method for DC resistance or conductance of insulating materials by D257-99 ASTM
GB/T 10581-2006 《緣材料在高溫下電阻和電阻率的試驗方法》
Test method for resistance and resistivity of insulating materials at high temperature by 10581-2006 GB/T
GB/T 1692-2008 《硫化橡膠 緣電阻率的測定》
1692-2008 GB/T "determination of electrical resistivity of vulcanized rubber"
GB/T 2439-2001《硫化橡膠或熱塑性橡膠 導電性能和耗散性能電阻率的測定》
2439-2001 GB/T - Determination of electrical conductivity and dissipative properties of vulcanized rubber or thermoplastic rubber
GB/T 12703.4-2010 《紡織品 靜電性能的評定 第４部分：電阻率》
12703.4-2010 GB/T "the fourth part of the evaluation of the electrostatic properties of textiles: electrical resistivity"
GB/T 10064-2006_《測定固體緣材料緣電阻的試驗方法》
10064-2006_ GB/T "test method for the determination of the insulation resistance of solid insulating materials"
一、概述
First, an overview
緣材料體積表面電阻率測試儀既可測量高電阻，又可測微電流。采用了規模集成電路,使儀器體積小、重量輕
The instrument can measure high resistance, and measuring current. The United States Intel company's large-scale integrated circuit, so that the instrument is small, light weight
準確度高。數字液晶直接顯示電阻值和電流。量限從1×104Ω ～1×1018 Ω，是測量范圍寬，準確
High accuracy. Digital liquid crystal display direct current resistance and current. The measurement range is from 1 * 104 to 1 * 1018, which is the most wide and accurate measurement range in China.
度zui高的數字超高阻測量儀。電流測量范圍為2×10-4 ～1×10-16Ａ。機內測試電壓為
Digital ultra high resistance measuring instrument with the highest degree. The current measurement range is 2 * 10-4 ~ 1 * 10-16A. The test voltage in the machine is
10V/50V/100V/250V/500V/1000V任意可調。本儀器具有精度高、顯示迅速、性好穩定、讀數方便， 適用于橡
10V/50V/100V/250V/500V/1000V arbitrary adjustable. The instrument has the advantages of high accuracy, rapid display, good stability, convenient reading, and is suitable for the rubber and the rubber.
膠、塑料、薄膜、及粉體、液體、及固體和膏體形狀的各種緣材料體積和表面電阻值的測定。本儀器除能測
Plastic, plastic, film, and powder, liquid, and solid and paste shapes of various insulating materials volume and surface resistance values. In addition to the measurement of the instrument
電阻外，還能直接測量微弱電流。
Resistance, but also can directly measure the weak current.
二、主要特點
Two, the main features
電阻測量范圍寬 1×104Ω ～1×1018Ω
Resistance measurement range x 104 x 1 x 1018 x 1
電流測量范圍為 2×10-4Ａ ～1×10-16Ａ
The current measurement range is 2 * 10-4A ~ 1 * 10-16A
體積小、重量輕、準確度高
Small size, light weight, high accuracy
電阻、電流雙顯示
Dual display of resistance and current
性能好穩定、讀數方便
Good performance and stable, easy to read
所有測試電壓(10V/50V/100/V) 測試時電阻結果直讀，免去老式高阻計在不同測試電壓下或
All the test voltage (10V/50V/100/V) to test the resistance results in reading, replacing the old high resistance meter in different test voltages or
不同量程時要乘以系數等使用不便的麻煩，使測量超高電阻就如用萬用表測量普通電阻樣簡便。
When the scale is different from the use of the inconvenience of the trouble, so that the measurement of ultra high resistance, such as the use of a universal meter to measure the general resistance.
既能測超高電阻又能測微電流
Not only can measure high resistance and micro current
三、技術指標
Three, technical indicators
1、電阻測量范圍： 0.01×104Ω ～1×1018Ω。
1, resistance measurement range: 0.01 * 104 ~ 1 * 1018.
2、電流測量范圍為： 2×10-4A～1×10-16A
2, the current measurement range is: 2 x 10-4A ~ 1 x 10-16A
3、顯 示 方 式：數字液晶顯示
3, display mode: Digital LCD display
4、內置測試電壓： 10V 、50V、100V、250、500、1000V
4, built-in test voltage: 10V, 50V, 100V, 250, 500, 1000V
5、基本準確度：1% (*注)
5, basic accuracy: 1% (* Note)
6、使用環境： 溫度：0℃～40℃，相對濕度<80%
6, the use of the environment: temperature: 0 degrees Celsius to 40 degrees Celsius, the relative humidity of <80%
7、機內測試電壓： 10V/50V/100/V 任意切換
7, the machine test voltage: 10V/50V/100/V arbitrary switching
8、供電形式： AC 220V，50HZ，功耗約5W
8, power supply form: 220V AC, 50HZ, power consumption of about 5W
9、儀器尺寸： 285ｍｍ× 245ｍｍ× 120 mm
9, instrument size: 285mm * 245mm * 120 mm
10、質量： 約2.5KG
10, quality: about 2.5KG
四、工作原理
Four, working principle
根據歐姆定律，被測電阻Rx等于施加電壓V除以通過的電流I。傳統的高阻計的工作原理是測量電壓V
According to Ohm's law, the measured resistance Rx is equal to the applied voltage V divided by the current I. Traditional high resistance meter working principle is to measure the voltage V
固定，通過測量流過取樣電阻的電流I來得到電阻值。從歐姆定律可以看出，由于電流I是與電阻成反比，
The resistance value is obtained by measuring the current I flowing through the sampling resistor. From Ohm's law, it can be seen that the current I is inversely proportional to the resistance,
而不是成正比，所以電阻的顯示值是非線性的，即電阻無窮大時，電流為零，即表頭的零位處是∞，其
And not directly proportional to, so the resistance to the display value is nonlinear, the resistance is infinite, the current is zero, namely header zero is infinity.
附近的刻度非常密，分辨率很低。整個刻度是非線性的。又由于測量不同的電阻時，其電壓V也會有些變
The scale is very close and the resolution is very low. The whole scale is nonlinear. And because the measurement of different resistance, the voltage V will be a little change
化，所以普通的高阻計是精度差、分辨率低。
So the common high resistance meter is of low precision and low resolution.
本儀器是同時測出電阻兩端的電壓V和流過電阻的電流I，通過內部的大規模集成電路完成電壓除以
The instrument is to measure the voltage at both ends of the V and the current through the resistance of I, through the internal scale integrated circuit to complete the voltage divided by
電流的計算，然后把所得到的結果經過A/D轉換后以數字顯示出電阻值，即便是電阻兩端的電壓V和流
The calculation of the current, and then the results obtained after the A/D conversion to figure out the value of the resistance, even the resistance of both ends of the voltage V and flow
過電阻的電流I是同時變化，其顯示的電阻值不象普通高阻計那樣因被測電壓V的變化或電流Ｉ的變化而
The current I of the over resistance is changed at the same time, the resistance value which is displayed is not the same as that of the ordinary high resistance meter because of the change of the measured voltage V or the change of the current I.
變，所以，即使測量電壓、被測量電阻、電源電壓等發生變化對其結果影響不大，其測量精度很高()，
Change, so, even if the measurement voltage, measured resistance, supply voltage and other changes have little impact on its results, the measurement accuracy is very high (patent),
從理論上講其誤差可以做到零，而實際誤差可以做到千分之幾或萬分之幾。
In theory, the error can be zero, and the actual error can be done a few thousand or ten thousand.
典型應用
Typical applications
1、測量緣材料電阻(率)
1, measuring the resistance of insulating materials (rate)
2、測量防靜電材料的電阻及電阻率
2. Measure the resistance and resistivity of the antistatic material.
3、測量計算機房用活動地板的系統電阻值
3. Measure the system resistance value of the computer room floor.
4、測量防靜電鞋、導電鞋的電阻值
4, measuring the resistance value of anti-static shoes, conductive shoes
5、光電二管暗電流測量
5, photoelectric diode dark current measurement
6、物理,光學和材料研究
6, physics, optics and materials research
標準配置：
Standard configuration:
1、測試儀器：1臺
1, test equipment: 1 sets
2、.電源線：1條
2, power line: 1
3、測量線：3根（屏蔽線、測試接線、接地線）
3, measuring line: 3 (shielding wire, test wiring, grounding wire)
4、使用說明書：1份
4, the instruction manual: 1 copies
備注：
Remarks：
本儀器配不同的測量電（夾具）可以測量不同材料（固體、粉體或液體）的體積電阻率和表面電阻
This instrument can measure the volume resistivity and surface resistance of different materials (solid, powder or liquid) with different measuring electrodes (fixture).
率或電導率，完全符合標準GB1410－2006固體電工緣材料緣電阻、體積電阻系數和表面電阻試
Rate or conductivity, in full compliance with the insulation resistance, volume resistivity and surface resistivity test of national standards GB14102006 of solid electrical insulating materials
驗方法，ASTM D257 緣材料的直流電阻或電導試驗方法 等標準要求。
Standard requirements for test methods, such as DC resistance or electrical co
nductivity test method of D257 ASTM insulation material.
