價格：電議
所在地：廣東 深圳市
型號：HTM13264
更新時間：2017-12-25
瀏覽次數：1251
公司地址：深圳市龍崗區坪山鎮寶龍工業城錦龍大道2號精華中科技園五棟二樓
洪梅(女士)
| 深圳市鑫洪泰電子科技有限公司 成立于2004年，位于深圳市最大的工業園區龍崗寶龍工業城內的深圳虛擬大學園（龍崗）孵化基地精華中科技園，是一家專業從事LCD和LCM研發、生產、銷售和售后于一體的高科技民營企業。 |
| “以人為本，以質為綱，以客為尊”是我們至今秉承的經營理念。公司擁有一支經驗豐富的研發、銷售和生產管理人員，并具備成熟的生產工藝和先進的智能化進口專業生產設備。我們承接各種TN、HTN、STN、FSTN、WFSTN，TAB、COG、CSTN、TFT OLED；智能TFT液晶屏/2.8/3.5/4.3/5./5.6/6.2/7/8/9/10.1寸；普通TFT液晶屏 ：1.44/1.77/2.2/2.4/2.8/3.5/4.3/5/5.6/5.7/6.2/7/10.1 etc的開發設計、開模定制、單片機開發及LCD的來料加工。 |
| 公司自創立以來，開發出上千款標準和非標準液晶產品，廣泛應用于，家用電器：空調，冰箱，微波爐，電磁爐，電飯煲，飲水機，燃?xì)鉅t，熱水器，空氣清新機，除濕機，加濕機，凈化器，消毒機，檔案柜，音響等。消費電子、汽車電子：汽車儀表，GPS全球定位，行駛記錄儀，輪胎感壓儀，汽車音響，倒車?yán)走_(dá)，防盜器等。通訊設備：手機，電話，無線公話；教育電子、稅控設備、儀器儀表：航天儀表，溫度儀表，水表，電表，萬用表，壓力儀表，流量?jī)x表、物位儀表，顯示儀表，電工儀表，電氣測量，檢測儀表，分析儀器，電化學儀器光學儀器，測量?jī)x器等；智能設備、醫療設備、工控設備、電力設備、航天、軍工等等諸多領域。公司產品有：段碼、點陣、字符、灰膜、藍膜、黑膜、彩色、藍底黑字、藍底白字、白底黑字、綠底黑字、黃底黑字、多種顏色顯示。既有標準品，也歡迎依客戶要求定制。按客戶要求來定制；連接方式有： 導電膠條、金屬插腳、TAB、COG、COB等； |
| 我們?yōu)楸姸嗥髽I(yè)提供高品質液晶屏（LCD）和液晶模組（LCM）產品和產品方案。好的產品，好的服務，讓我們贏得了客戶的認可和信任，并與眾多知名國有、民營和軍工企業建立了良好的合作關系。有客戶的大力支持，再加上我們不懈的努力，相信我們將會更具創造力和競爭力，早日躋身于國內LCD平板顯示行業的前列。 |
| 產品嚴格執行SIO9001質量管理體系要求（通過了SGS認證），保證產品質量 |
產 品 描 述

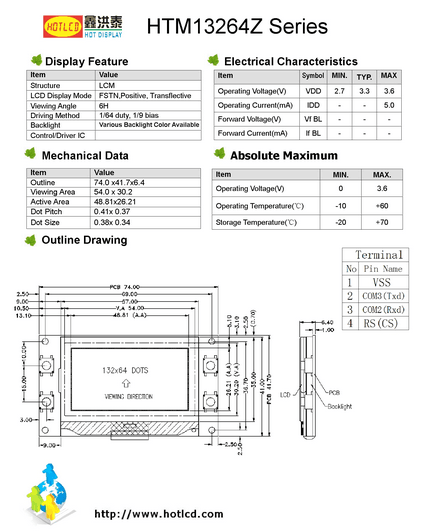

產品型號：HTM13264Z ( COG+PCB)
外形尺寸： 74.mm*41.7mm
視域尺寸： 48.81mm*26.21mm
點 距 離： 0.41mm*0.37mm
點 大 小： 0.38mm*0.34mm
顯示內容： 132（例）*64（行）
控 制 器： ST7565
數據傳輸： RS
工藝形式：智能液晶屏13264屏13264COG
玻璃類型： STN黃綠，F(xiàn)STN半透,反射
背光類型： LED
連接方式： FPC軟排線插接或焊接
顯示效果； 可根據客戶要求顯示單色、雙色、三色、等多種顏色
工作電壓: 低功耗VDD=3V-3.3V可用軟件調節對比度
特 點： 抗干擾能力強，訂貨方便
2012年推出單色TFT彩屏,MCU應用開發，銷售10.1寸以下所有TFT驅動測試板(USB接口+FLASH圖片存儲) 。
我們公司2003年開廠到現在已經開發和推出上千款的產品,產品有標準品和非標準品，可生產段碼、字符點陣、圖形點陣、COG、COB、TAB等到液晶模組，有TN、HTN、STN、FSTN、CSTN、 TFT等不同模式產品，可顯示白底黑字、白底藍字、黑底白字、黑底黃字、黑底藍字、藍底白字、藍底黑字、綠底黑字、黃底黑字、橙底黑字、雙色、三色、等多種顏色顯示。圖型點陣顯示屏現有128*32、128*48、128*64、132*64、128*128、160*160、240*160、320*240等。字符點陣屏有40*4、40*2、20*4、20*2、16*4、16*3、16*2、16*1、8*2等。單色TFT和彩屏有1.44寸、1.7寸、2.0寸、2.2寸、2.4寸、2.8寸、3.2 寸、3.5寸、4.3寸、5.6寸、7.0寸、8.0寸、10.1寸等。產品廣泛應用于通訊設備、汽車電子、家用電器、儀器儀表、金融稅控產品、消費數碼產品、其他顯示類產品。我們承接各種LCD、LCM的開發設計、開模定制、單片機開發及來料加工?！皼](méi)有！只有更好！”是我們的經營理念；“價格優惠、供貨及時、品質保證、服務周到”是我們的銷售原則；“共謀發展，實現雙贏”是我們的共同目標。歡迎各位朋友選用我司產品，我們竭誠為您提供的服務和技術支持。產品一個月包退換，一年保修。
| HOT Display TFT Modules directory | ||||||||
| Format | ||||||||
| TFT lcd Module size (inch) | Model Name | Char x Line | Outline Dimension(mm) | PIN ( number) | LCD manufacturers | Control/Driver | Touch screen | TFT type |
| 1.44 | HTT128128N04 | 128*128 | 30.9*36.51 | 20PIN | CPT | ST7735S | W/O TP | TN |
| 1.77 | HTT128160NO7 | 128*160 | 31.83*41.42 | 20PIN | CMO | ST7735S | W/O TP | TN |
| .2.0 | HTT176220N08 | 176*220 | 37.80*51.40 | 24PIN | CMO | ST7775R | W/O TP | TN |
| 2.2 | HTT176220N02-C | 240*320 | 40.3*55.26 | 37PIN | CPT | ILI9225G | W/O TP | TN |
| 2.4 | HTT240320N20 | 240*320 | 43.20*59.62 | 40PIN | HSD | ILI9341 | W/O TP | TN OR IPS |
| 2.8 | HTT240320T16 | 240*320 | 50.0*69.2 | 30PIN | CPT | ST7789S | W TP OR W/O TP | TN |
| .3.0 | HTT240400NO6 | 240*400 | 45.04*77 | 40PIN | HSD | ILI19327 | W TP OR W/O TP | TN |
| 3.5 | HTT320480TO2 | 320*480 | 55.30*85.0 | 44PIN | HSD | ILI9488 | W TP OR W/O TP | TN |
| 3.5 | HTT320240N11 | 240*320 | 78.2*65 | 54PIN | CMO | HX8238 | W/O TP | TN |
| 4.3 | HTT480272T09/N10 | 480*272 | 105.5*67.2 | 40PIN | CPT | OTA5180/HX8257 | W TP OR W/O TP | TN |
| .5.0 | HTT800480 | 800*480 | 120.7*76.3 | 50PIN | EJO50 | HX8264/9664/ILI6122/5960 | W/O TP | TN |
| 5.6 | HTT640480 | 640*480 | 126.5*100.0 | 50PIN | LnnoLux | HX8264/9664/ILI6122/5960 | W/O TP | TN |
| 6.2 | HTT800480N17 | 800*480 | 155.2*88.2 | 60PIN | CPT | ILI9123/ILI5480 | W/O TP | TN |
| .7.0 | HTT800480T16 | 800*480 | 165.0*100.0 | 50PIN | CPT | HX8264/9664/ILI6122/5960 | W/O TP | TN |
| .7.0 | HTT800480N03 | 800*480 | 165.0*100.0 | 50PIN | LnnoLux | HX8264/9664/ILI6122/5960 | W TP OR W/O TP | TN |
| .8.0 | HTT800480 | 800*480 | 192.8*116.9 | 60PIN | HSD | HX8264/9664/ILI6122/5960 | W/O TP | TN |
| .9.0 | HTT800480 | 800*480 | 211.1*126.5 | 50PIN | LnnoLux | HX8264/9664/ILI6122/5960 | W/O TP | TN |
| 10.1 | HTT1024600 | 1024*600 | 235.0*143.0 | 60PIN | HSD | HX8264/9664/ILI6122/5960 | W/O TP | TN |
| Mono TFT lcd module( it can to sun reading) | ||||||||
| 3.5 | HTT0301 | 320*480 | 79.94*58.6 | 50PIN | ST7511 | W/O TP | TN | |
| 4.8 | HTT048A01 | 400*240 | 108*71.4 | 20PIN | W/O TP | TN | ||
| 5.7 | HTM057A02 | 320*240 | 151.7*111 | 20PIN | W/O TP | TN | ||
| 6.2 | HTM062A02 | 640*320 | 165.4*165.4 | 20PIN | W/O TP | TN | ||
| Intelligence TFT lcd module(RS232/TTL232/RS485/ CAN/interface ) | ||||||||
| inch | Model Name | Format | V.A.(mm) | interface | ||||
| 4.3 | HTM043A04800272 | 480*272 | 98*56.86 | RS232/TTL232/RS485/CAN | ||||
| 5 | HTM050A08000480A | 800*480 | 110.6*67.4 | RS232/TTL232/RS485/CAN | ||||
| 7 | HTM070A08000480A | 800*480 | 156.7*89.1 | RS232/TTL232/RS485/CAN | ||||
| 10.1 | HTM101A10240600A | 1024*600 | 224.92*127.48 | RS232/TTL232/RS485/CAN | ||||
| COG . LCM Graphic Module List | ||||||||
| Display | COG | |||||||
| Format | Model Name | Control/Driver | Outline Dimension | V.A.(mm) | Supply Voltage | interface Mode | ||
| 16 x 3 | HTG1603A | ST7036 | 39.0 x 25.5 x 2.0MAX. | 35.0 x 17.0 | 3.3V | Parallel | ||
| HTG1603B | ST7036 | 64.0 x 33.5 x 2.0MAX. | 61.0 x 25.0 | 3.3V | Parallel | |||
| 96 X 16 | HTG9616A | ST7549 | 29.2 x 10.8 x 1.7MAX | 21.0 x 6.0 | 3.0V | I2C | ||
| 96 X 26 | HTG9626A | ST7549 | 32.9 x 17.0 x 1.7MAX | 29.9 x 9.0 | 3.0V | Parallel | ||
| 96 X 96 | HTG9696A | SSD1848 | 29.9 x 35.9 x 2.9MAX | 25.0 x 25.0 | 3.3V | Parallel / Serial | ||
| 128 x 32 | HTG12832A | ST7565P | 34.5 x 17.9 x 2.0MAX. | 32.0 x 10.1 | 3.0V | Parallel | ||
| HTG12832F | ST7565R | 63 x 27.5 x2.0MAX | 59 x17.5 | 3.0V | Parallel | |||
| HTG12832F-3 | ST7565R | 63.0 x 27.5 x 2.0MAX. | 59.0 x 17.5 | 3.0V | Parallel | |||
| HTG12832F-6 | ST7565R | 65.4 x 29x 3.4MAX. | 59.0 x 17.5 | 3.0V | Parallel / BL | |||
| HTG12832I | ST7565R | 51 x 25.5x 1.7MAX. | 48 x17.2 | 3.0V | Parallel / Serial | |||
| 128 x 48 | HTG12848A | ST7565R | 78.7 x 35.9 x 2.8MAX. | 75.3 x 28.3 | 3.3V | Parallel | ||
| HTG12848B | ST7565R | 76.3 x 40.1 x 2.8MAX. | 73.3 x 32.5 | 3.3V | Parallel / Serial | |||
| 128 x 64 | HTG12864C | ST7565R | 39.0 x 31.1 x 1.9MAX. | 36.0 x 23.5 | 3.0V | Parallel / Serial | ||
| HTG12864D | ST7565R | 31.0 x 27.0 x 1.7MAX. | 28.0 x 18.0 | 3.0V | Parallel | |||
| HTG12864I | ST7565R | 69.1 x 50.0 x 2.8MAX. | 65.5 x 38.0 | 3.0V | Serial | |||
| HTG12864T | ST7565P | 53.2 x 37.8x 2.8MAX. | 45.2 x27 | 3.3V | Parallel / Serial | |||
| HTG1284LQ | ST7565P | 28.5 x20x 1.85MAX. | 25.5 x13.3 | 3.3V | Parallel | |||
| HTG12864N | ST7565P | 35.8 x 33.3 x 2.7MAX | 31 x 21 | 3.0V | Parallel | |||
| HTG12864W | ST7565P | 57 x 39.3 x 2.0MAX | 52.6x 27.5 | 3.3V | Parallel / Serial | |||
| HTG12864K1 | NT7534 | 89.8 x 54.6 x 7.0MAX | 70.7 x 38.8 | 3.0V | Serial，Add BL | |||
| HTG12864-9 | ST7565P | 33.1x 31.5 x1.70MAX | 30.1 x 23.3 | 3.3V | Serial | |||
| HTG12864-20 | ST7565P | 53.2 x 37.8 x 2.8MAX. | 45.2 x 27.0 | 3.3V | Parallel / Serial | |||
| HTG12864-55 | ST7565R | 28.55 x 20.1 x1.7MAX. | 26.15 x13.9 | 3.3V | Serial | |||
| 128 x 128 | HTG128128D | SSD1779 | 49 x 53 x2.0MAX. | 46 x 38 | 3.3V | Parallel | ||
| HTG128128K | S6B0741 | 46.5 x 55.2 x1.8MAX. | 39.64 x46 | 3.3V | Parallel | |||
| HTG18128Z | SSD1848 | 46.5 x 55.2 x 1.8MAX. | 39.64 x 46.04 | 3.0V | Parallel,Add BL | |||
| HTG13264C | ST7565R | 57.5 x 41.0 x 2.0MAX. | 54.0 x30.2 | 3.3V | Parallel | |||
| 240 x 160 | HTG240160L | ST7529 | 60*49.5MM | 56*38.7MM | 3.3V | Parallel | ||
| 240 x 160 | HTG240160C | ST7529 | 77.42 x 61.0x2.0MAX. | 73.42 x 48.0 | 3.3V | Parallel | ||
| 320*240 | HTG320240A | ST75320 | 107*84MM | 102*72MM | 3.3V | SPI | ||
| 160*32 | HTG16032G | ST7565R | 91.2*31.2MM | 83.*21.2MM | 3.3 | Parallel / Serial | ||
| LCM Modules | ||||||||
| DisplayFormat | LCM--model Name | ICControl/Driver IC | (mm)Outline Dimension(mm) | (mm)V.A.(mm) | Supply Voltage | interface Mode | ||
| 122 x 32 | HTM12232A | SED1520 | 84.0 x 44.0 x 13.9MAX. | 60.0 x 18.0 | 5.0V | Parallel | ||
| HTM12232G | ||||||||
| HTM12232Z | ST7920 | 84.0 x 44.0 x 13.9MAX. | 60.0 x 18.0 | 5.0V | Parallel / Serial | |||
| 128 x32 | HTM12832Z | ST7920 | 83.5 x 37.5 x 8.6Max. | 64.5 x 16.0 | 5.0V | Parallel / Serial | ||
| 128 x 64 | HTM12864A | S6B0108 | 113.0 x 65.0 x 12.7MAX. | 72.0 x 39.5 | 5.0V | Parallel | ||
| HTM12864-21 | ||||||||
| HTM12864B | S6B0108 | 93.0 x 70.0 x 14.1MAX. | 72.0 x 39.5 | 5.0V | Parallel | |||
| HTM12864C02 | ST7565R | 40.6 x 32.2 x 11.0MAX. | 37.0 x 23.3 | 3.3V | Parallel / Serial | |||
| HTM12864D | S6B0108 | 78.0 x 70.0 x 13.2MAX. | 62.0 x 44.0 | 5.0V | Parallel | |||
| HTM12864F | S6B0108 | 54.0 x 50.0 x 12.5MAX. | 44.5 x 30.0 | 5.0V | Parallel | |||
| HTM12864Z | ST7920 | 93.0 x 70.0 x 13.5MAX. | 71.4 x 38.7 | 3.3V / 5.0V | Parallel / Serial | |||
| HTM12864-6 | T6963C | 78.0 x 70.0 x 13.2MAX. | 62.0 x 44.0 | 5.0V | Parallel | |||
| HTM12864-7 | ST7565R | 95.0 x 55.7 x 11.8MAX. | 65.0 x 38.0 | 3.0V | Serial | |||
| HTM12864-8G | ST7565R | 80.0 x 70.0 x 11.3MAX. | 65.4 x 37.8 | 3.0V | Parallel | |||
| HTM12864-18 | NT7534 | 93.0 x 70.0 x 13.5MAX. | 71.4 x 38.8 | 5.0V | Parallel / Serial | |||
| HTM12864-18P | NT7534 | 93.0 x 70.0 x 13.5MAX. | 71.4 x 38.8 | 5.0V | Parallel / Serial | |||
| HTM12864-19C | ST7565R | 45.0 x 42.0 x 10.5MAX. | 36.0 x 23.5 | 3.3V | Serial | |||
| HTM12864-23 | ST7565P | 54.0 x 50.0 x 9.0MAX. | 45.2 x 27.0 | 3.3V | Parallel / Serial | |||
| HTM12864-27 | NT7534 | 93.0 x 70.0 x 13.5MAX. | 65.5 x 38.0 | 3.3V / 5.0V | Serial | |||
| 130 x64 | HTM13064A | S6B0724 | 120 x 64x 13MAX. | 83.3 x 41 | 3.3V | Parallel / Serial | ||
| 160 x 128 | HTM160128B | T6963C | 129.0 x 97.0 x 16.5MAX. | 101.0 x 82.0 | 5.0V | Parallel | ||
| 160 x 160 | HTM160160C | UC1698u | 82.4 x 66.0 x 9.5MAX. | 60.0 x 60.0 | 3.0V | Parallel | ||
| 192 x 64 | HTM19264A | S6B0108 | 130.0 x 65.0 x13.5MAX. | 103.92 x 38.94 | 5.0V | Parallel | ||
| HTM19264C | S6B0108 | 100.0 x 60.0 x 11.6MAX. | 81.6 x 31.0 | 5.0V | Parallel | |||
| 240 x 64 | HTM24064A | T6963C | 180 x 62.0 x 14.5MAX. | 132.0 x 39.0 | 5.0V | Parallel | ||
| HTM24064C | T6963C | 180 x 75.0 x 10.0MAX. | 132.0 x 39.0 | 5.0V | Parallel | |||
| 240 x 128 | HTM240128A | T6963C | 144.0 x 104.0 x 12.0MAX. | 114.0 x 64.0 | 5.0V | Parallel | ||
| HTM240128Z | RA8806 | 144.0 x 104.0 x 14.6MAX. | 114.0 x 64.0 | 5.0V | Parallel | |||
| 256 x 32 | HTM25632A | S6B0108 | 151.0 x 37.8 x 12.0MAX. | 119.0 x 23.0 | 3.3V / 5.0V | Parallel | ||
| 256 x 128 | HTM256128B | 147.0 x 116.0 x 14.6MAX. | 122.0 x 70.0 | 5.0V | Parallel | |||
| 240 x 160 | HTM240160F | ST7529 | 87.0 x 73.0 x 10.0MAX. | 72.9 x 48.0 | 3.3V | Parallel | ||
| HTM240160E | SSD13700 | 135.0 x 95.0 x 12.0MAX. | 109.0 x 74.0 | 3.3V | Parallel | |||
| 320 x 240 | HTM320240A | RA8835/8806 | 160.0 x 109.0 x 13.0MAX. | 122.0 x 92.0 | 3.3V / 5.0V | Parallel | ||
| HTM320240B | NT7701/7702 | 122.0 x 94.0 x 13.0MAX. | 100.0 x 76.0 | 5.0V | 4-bit Parallel | |||
| HTM320240F-1 | RA8835 | 92.0 x 71.3 x 7.9MAX. | 78.78 x 59.58 | 3.3V | Parallel | |||
| HTM320240T | RA8835/RA8803 | 160x 109 x 13MAX. | 122 x92 | 5 | Parallel | |||
| HTM32020I | RA8806 | 102.0 x81.4 x 8.5MAX. | 78.78 x 59.58 | 3.3V | Parallel | |||
| 640 x 200 | HTM640200A | S6B2086 | 260.0 x 110.7 x 12.9MAX. | 216.0 x 83.2 | 5.0V | 4-bit Parallel | ||
