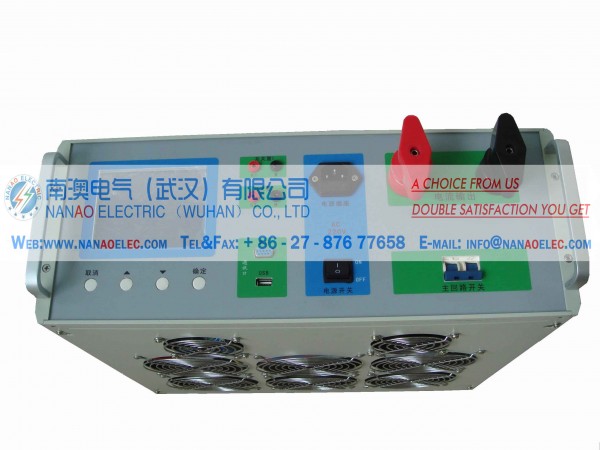

NAAS-500A DC Circuit Breaker Safety Second Characteristic Tester  南澳電氣NAAS-500A直流斷路器安秒特性測試儀

產品簡介

隨著國民經濟的飛速發展，民用和工業用電量的急劇增大，保障電網的安全運行工作越來越重要，在電力系統中，直流電源系統作為繼電保護、自動裝置、控制操作回路、燈光音響信號及事故照明等電源之用。

目前進行直流斷路器安秒特性檢測的機構和生產廠家用于直流空開安秒特性檢測的設備均為固定設備，如固定的大電流電源、大型負載電阻，體積大、重量大，不便于移動檢測，分析儀表均為常規儀表如電壓表、電流表、示波器等，接線復雜，使用不便，不適應各變電站移動檢測需要。為解決現場對直流斷路器實際特性檢測的問題，南澳電氣推出了一種適合變電站現場使用、便于攜帶、自動化程度高的"南澳電氣NAAS-500A直流斷路器安秒特性測試儀"，可以為運行維護部門提供直流保護電器動作特性的測試手段，對直流保護電器的動作特性以及級差配合進行校驗，以便提高直流系統運行的可靠性，保證電網的安全可靠運行。

南澳電氣NAAS-500A直流斷路器安秒特性測試儀是專為變電站試驗、檢修、維護工作而設計。滿足直流斷路器的超載和短路特性測試，從而提高變電站直流系統的健康水平，避免直流配電網絡出現越級跳閘和引發的大面積停電事故。

南澳電氣NAAS-500A直流斷路器安秒特性測試儀產品別名

直流斷路器安秒特性測試儀，安秒特性測試儀，直流斷路器安秒特性測試儀

南澳電氣NAAS-500A直流斷路器安秒特性測試儀產品特性

1、主控部分采用高性能工控機，Windows XP操作系統，實時顯示各項參數曲線圖及數值

2、鍵盤、觸摸板輸入(可外接USB鼠標)；5.7寸TFT真彩液晶屏顯示。操作簡單、界面美觀，所有參數一目了然

3、開關恒流控制技術，功率器件，1A～500A設定恒流輸出，恒流精度高，負載能力強，可長時間穩定工作

4、適用于額定電流1A～500A直流斷路器的安秒特性測試，并可用于6A～100A直流熔斷器的安秒特性測試

5、測量方式采用全點測試或抽點測試，響應速度快，測試精度高，安全可靠

6、直流斷路器安秒特性測試儀具有過熱、過流、過壓保護功能，電磁兼容性好，抗干擾能力強

7、測試管理軟件可自動完成直流斷路器的安秒特性的測試，并分析測試數據繪制出斷路器保護特性曲線(安秒曲線)、以及生成報表輸出

8、工控機自帶4G存儲空間，可任意存儲測試記錄，并配備了兩個USB接口，方便測試記錄的提取和打印

9、直流斷路器安秒特性測試儀采用一體化設計，便于攜帶

南澳電氣NAAS-500A直流斷路器安秒特性測試儀產品參數

工作電壓：AC220V、50Hz

環境溫度：-20℃～50℃

工作濕度：≤90%RH

測試電流：1～500A

測試電流紋波系數：< 2%

輸出電流穩定性：≤±1%

時間記錄范圍：1ms～1000s

zui小時間分辨率：0.1ms

操作方式：鍵盤、觸摸板（可外接USB鼠標）

外形尺寸：530mm×470mm×200mm

儀器重量：25kg

儀器外殼：鋁合金儀表箱



Product introduction

At present, the DC circuit breaker safety second feature detection agencies and manufacturers for DC empty open safety second characteristic measurement equipment are fixed equipment such as stationary high-current power , a large load resistance , bulky , heavy and not easy motion detection , analytical instruments are conventional instruments such as voltmeter, ammeter , oscilloscope , wiring complexity , inconvenient to use and does not meet the substation movement detection needs. In order to solve the actual scene of the DC circuit breaker feature detection problems, Nanao Electric Wuhan Co., Ltd. has introduced a suitable substation site to use, easy to carry, high degree of automation "NAAS-500A DC circuit breaker safety second characteristic tester " can DC for the operation and maintenance departments to provide protection of electrical operating characteristics of the means test, the DC protection of electrical characteristics and the differential with the action be verified in order to improve the current system's reliability , to ensure safe and reliable operation of the grid . NAAS-500A DC circuit breaker safety second characteristic tester is designed for substation testing , repair , maintenance and design. Meet the DC circuit breaker overload and short-circuit characteristic test , thereby improving the health of substation DC system , avoiding the DC distribution network appears grade trip and caused large-scale power outages .

Also called name

DC circuit breaker safety second characteristic tester, Ann second feature, the DC circuit breaker safety second characteristic tester

The Characteristics of the products

1, The main part of the high-performance industrial computer , Windows XP operating system, real-time display graphs and numerical parameters

2 , Keyboard, touchpad input ( can be an external USB mouse ) ; 5.7 -inch TFT color LCD display . Simple , beautiful interface, all parameters at a glance

3 , Switching constant current control technology, new power devices , 1A ~ 500A set their own constant current output , high precision constant current load capacity, can be a long time stability

4, Applies to the rated current of 1A ~ 500A DC circuit breaker safety second characteristic test can be used to 6A ~ 100A DC fuse safety second characteristic test

5 , The measurement method using whole point test or pumping point test , fast response , high precision , safety and reliability

6, The DC circuit breaker safety second characteristic tester with overheating , overcurrent, overvoltage protection , electromagnetic compatibility, anti-interference ability

7 , Test management software can automatically complete the DC circuit breaker safety second characteristics of the test , and analyze the test data to map out the circuit breaker protection characteristic curve ( On second curve ) , and generate report output

8 , IPC comes with 4G memory space can be arbitrarily stored test records , and is equipped with two USB ports to facilitate the extraction of test records and print

9, The DC circuit breaker safety second characteristic tester with integrated design, easy to carry

The parameters of the products

Working voltage: AC220V, 50Hz

Ambient temperature: -20 ℃ ~ 50 ℃

Operating Humidity: ≤ 90% RH

Test current: 1 ~ 500A

Test current ripple factor: <2%

Output current stability: ≤ ± 1%

Time Recording Range: 1ms ~ 1000s

The minimum time resolution: 0.1ms

Operation: keyboard, touchpad (can be an external USB mouse)

Dimensions: 530mm × 470mm × 200mm

Instrument Weight: 25kg

Instrument Enclosure: Aluminum meter box
